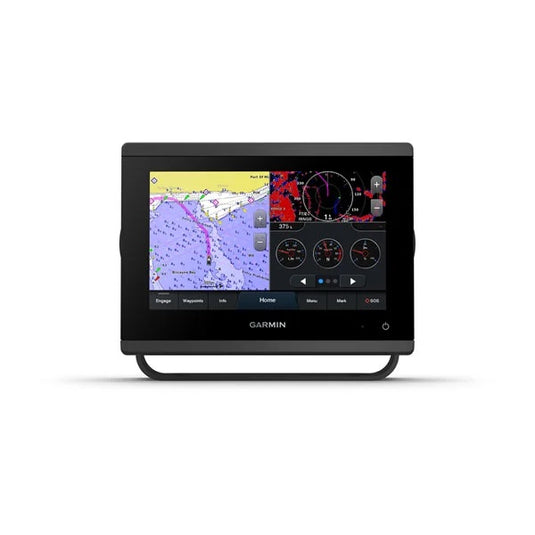

Garmin GPSMAP 723 Chartplotter with Worldwide Basemap
Model: 010-02365-00
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelmâ„¢ digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts1 for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more — right on the screen.
- Manage your marine experience from nearly anywhere1.
With 60% more display pixels and nearly double the processing power of previous-generation 7" GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7" plotter in a wider range of dash configurations.
New higher-resolution 7" displays offer improved sunlight readability with 60% more pixels than previous-generation 7" GPSMAP devices.
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.
Connect to compatible autopilots, digital switching, weather, Fusion-Linkâ„¢ audio system, media, VHF, AIS and more from one screen.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBusâ„¢ digital switching, on one screen.
Specifications
| General |
| PHYSICAL DIMENSIONS |
7.6"" x 5.5"" x 2.9"" (19.2 x 14.0 x 7.4 cm) |
| DISPLAY SIZE |
6.1"" x 3.5""; 7.0"" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION |
1024 x 600 pixels |
| DISPLAY TYPE |
WSVGA display |
| WEIGHT |
2.8 lbs (1.3 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 17.6 W
Typical current draw at 12 Vdc: 1.1 A
Max current draw at 12 Vdc: 1.5 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORKâ„¢ PORTS |
1 |
| Maps & Memory |
| PRELOADED MAPS |
Worldwide Basemap |
| ACCEPTS DATA CARDS |
2 microSDâ„¢ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (with external black box, sold separately) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINKâ„¢ COMPATIBLE RADIOS |
Yes |
| GSDâ„¢ BLACK BOX SONAR SUPPORT |
Yes |
| GCVâ„¢ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRIDâ„¢ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| CHIRP SONAR TECHNOLOGY |
Yes (with external black box, sold separately) |
| CLEARVü |
Yes (with external black box, sold separately) |
| SIDEVü |
Yes (with external black box, sold separately) |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
What's in the Box:
- GPSMAP 723 chartplotter
- microSDâ„¢ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
