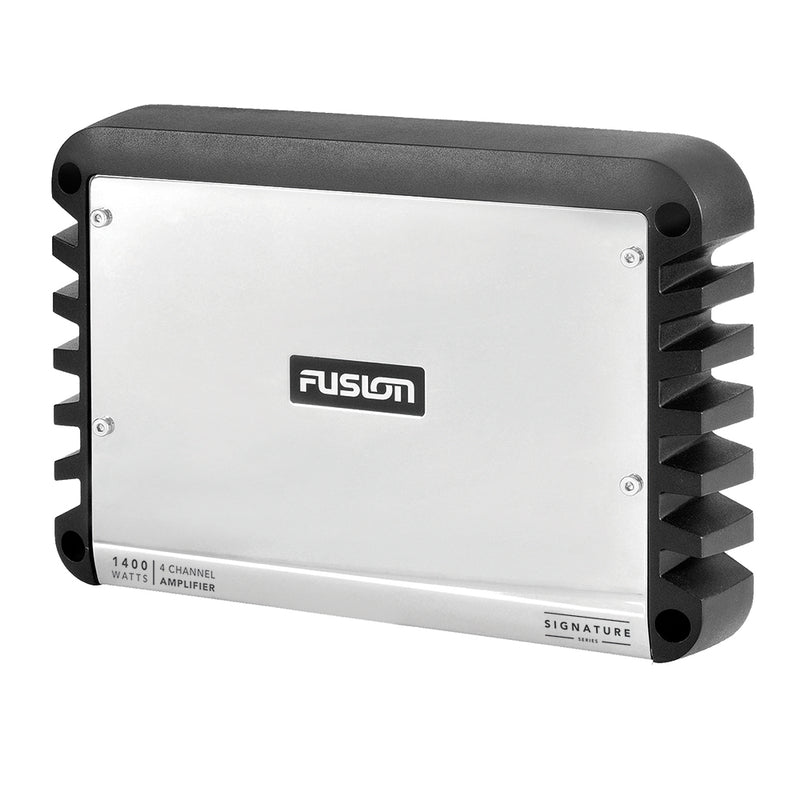

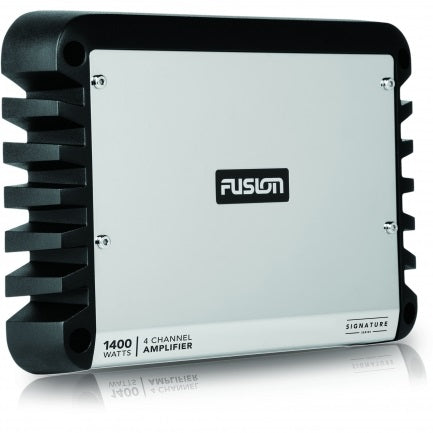

Fusion SG-DA41400 Signature Series 4 Channel Marine Amplifier
Model: 010-01969-00
UPC: 753759152994
The FUSION Signature Series Marine amplifiers are purpose built for the marine environment, boasting some of the most impressive environmental protection available, to deliver a Signature performance on the water like never before.
The stainless steel MS-DA41400 will resist corrosion and the incredible 1400 watt output (peak) will power four Signature speakers, or two Signature speakers and a subwoofer with ease. Alternatively create your own configuration with dedicated channel and bridging options available.
The MS-DA41400 is a 5 Channel Class-D Hi-Fi Marine amplifier; the key benefit of a Class-D amplifier is low battery drain with a high output, making this the perfect amplifier for the marine environment. The MS-DA41400 Incorporates heat-tempered and conformal coated PCB's for maximum product life plus the amplifier chassis acts as a heat sink; reducing component core temperature and increasing efficiency.
The stainless steel cover hides away the amplifier set up controls and connections for a discrete, attractive look. Connections Include four speaker channels for sound front and rear, with bridging ability to power subwoofers. RCA line-level inputs are included, for easy connection to new or existing systems.
Specifications
| Frequency response |
10Hz - 100kHz |
| Peak power |
1400 Watts |
| Rated Power |
150 Watts RMS x 4 @ 4 Ohm 1% THD+N
220 Watts RMS x 4 @ 2 Ohm 1% THD+N
440 Watts RMS x 2 @ 4 Ohm Bridged 1% THD+N |
| Dimensions |
8-1/4 in D x 2 in H x 11-13/16 in |
What's in the Box:
- SG-DA41400
- Mounting screws
- Documentation
